Gk 5216 Index

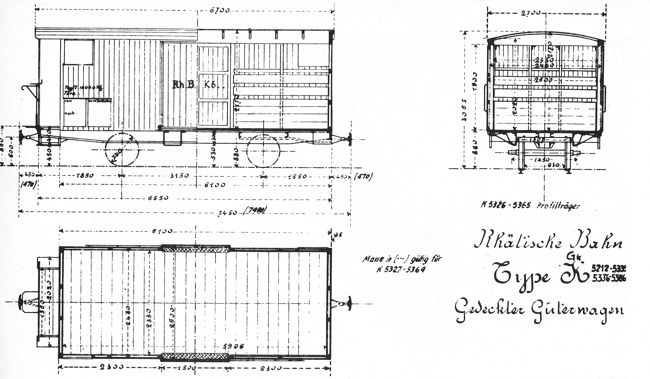

Prototype

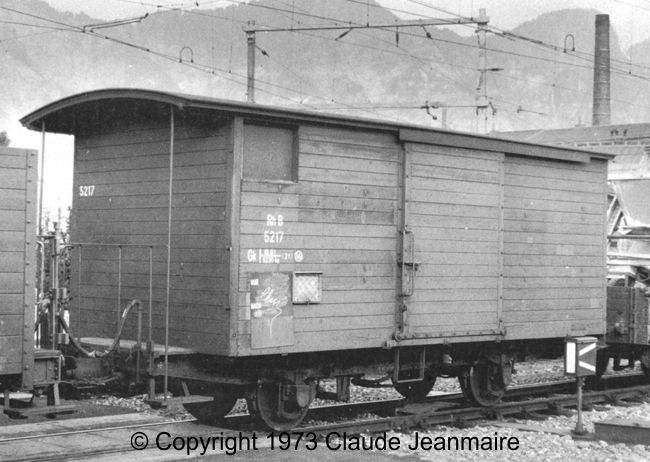

This car type was one of the originals on the LD back in 1889. The initial series was built by SIG, Neuhausen. Follow-up orders were built in Switzerland (several different builders), Germany and Belgium.



































Model











The starting point is the box from a Bachmann car which was on clearance. But even that needed to be shortened, however since it is a one piece injection it is really sturdy.

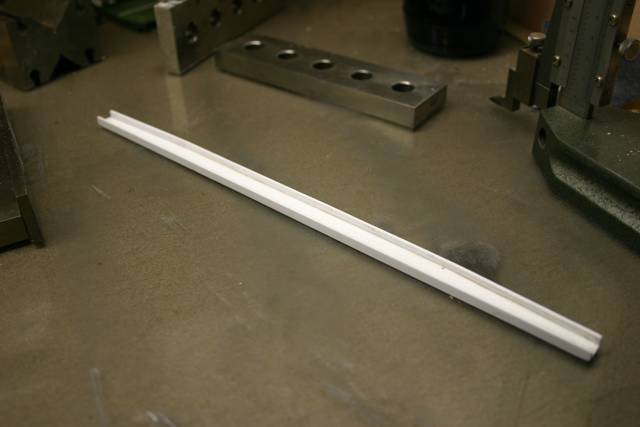

The U-channels for the frame are fabricated from styrene.

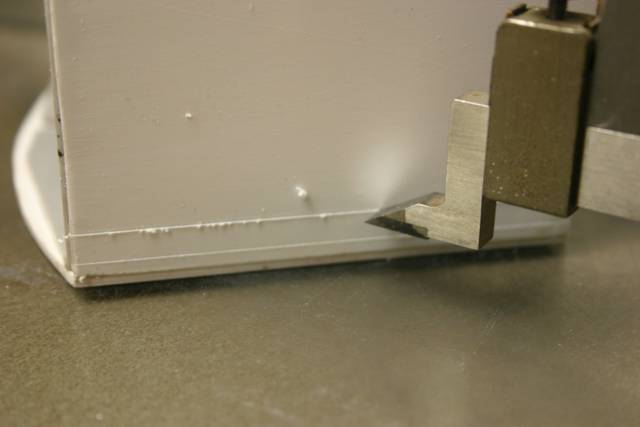

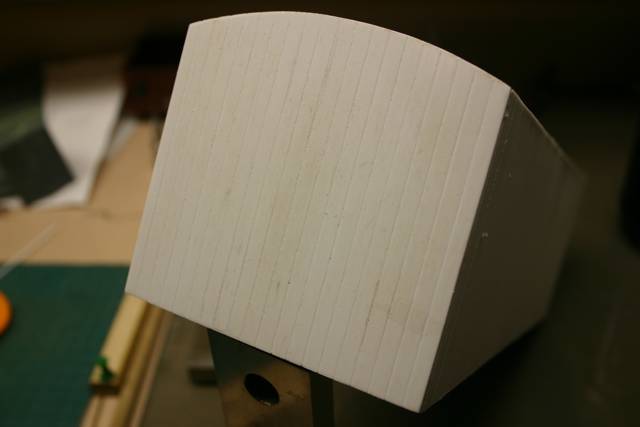

The boards are of the walls are scored with the height transfer gauge.

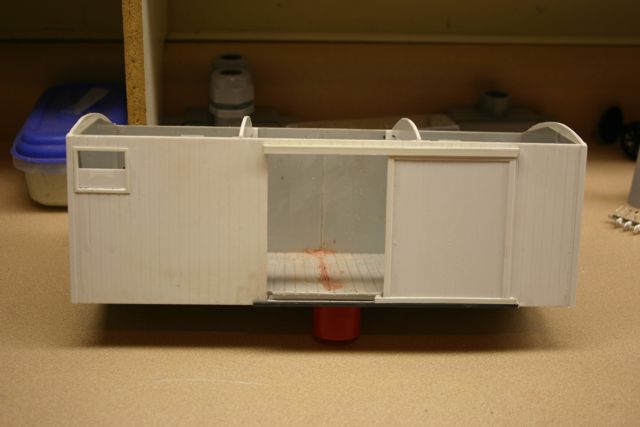

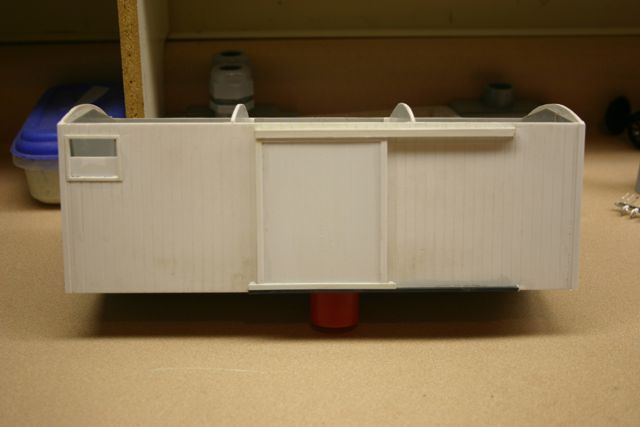

The doors can be opened

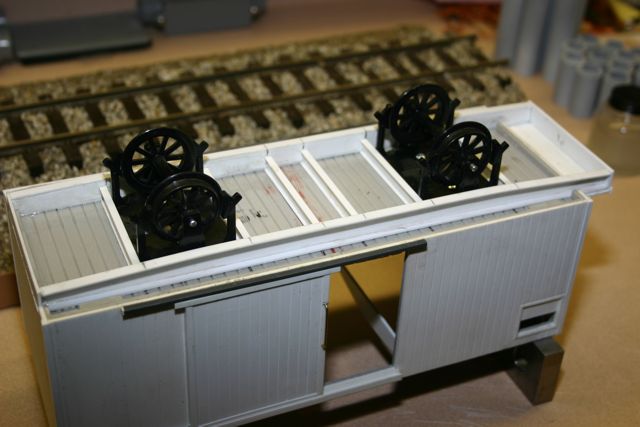

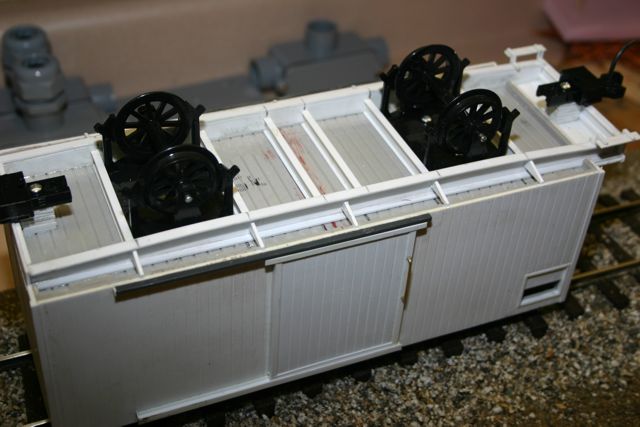

The frame with the crossmembers and the wall supports.

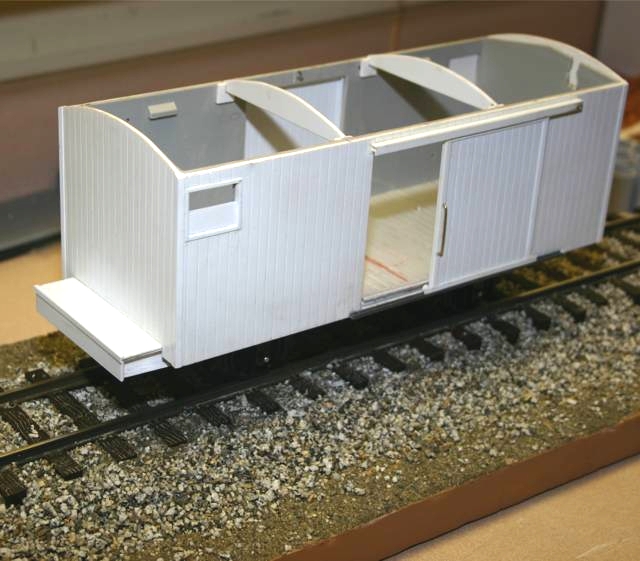

Brake platform

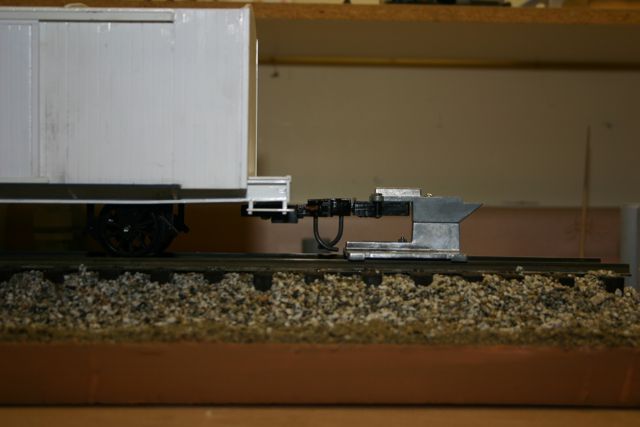

Steps and coupler

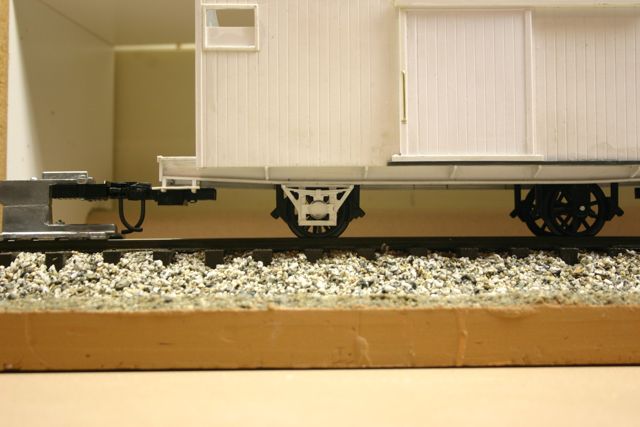

Journal with the spring arrangement

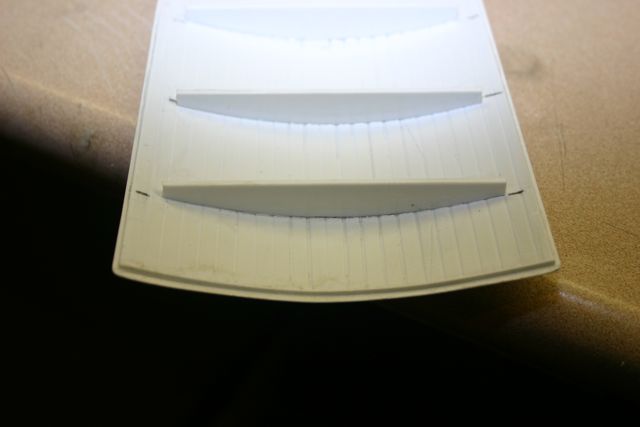

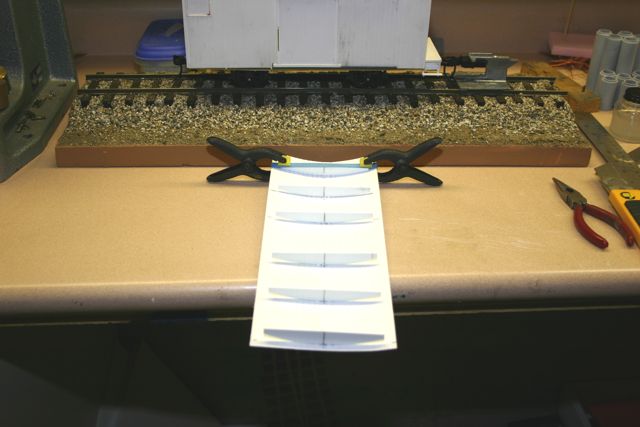

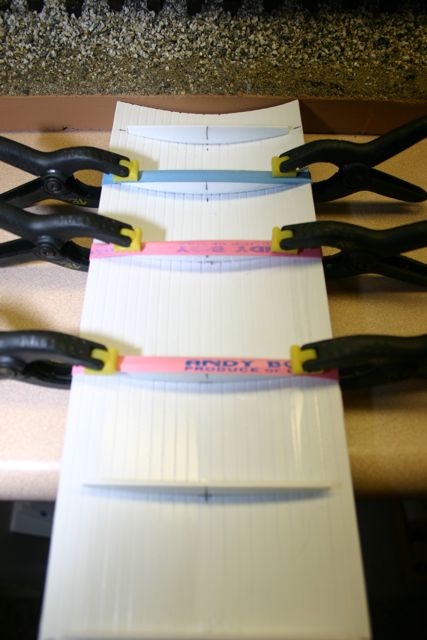

Roof reinforcements.















Subroof

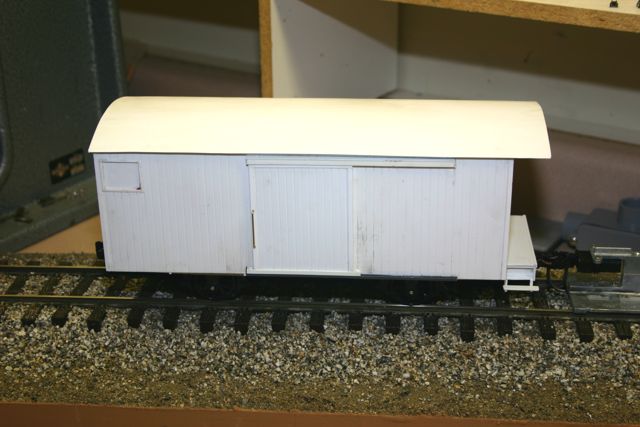

Sideview with the roof.















To be continued
